AirShock® it. Restore well capacity.
Fast. Powerful. Proven.

AirShock® uses controlled impulse pulses to clean the well screen, restore flow through the gravel pack and near-wellbore zone, and help stabilize the gravel pack

Download Brochure
100%+Capacity Restoration
1000+Wells Rehabilitated Annually
7Models Available
Proven in the field. Trusted by professionals worldwide.
AirShock® in Action — Watch Demo

More videos on our YouTube channel →

Environmentally Safe — No Harmful Chemicals
Owned equipment — no per-job fees
Full Well Treatment in Hours, Not Days
No Annual Royalties or Minimum Fees
Process

Three steps
One powerful result

AirShock works in screened and open-hole wells of any depth. Just lower, fire, and raise.

01

Lower the AIG

The AirShock® Impulse Generator is lowered into the well via hose reel to the treatment zone — whether at the screen, gravel pack, or open formation.

02

Activate & Pulse

Open the surface gas valve. The AIG automatically fires at 15–25 pulses per minute, generating powerful shock waves and oscillating bubbles that penetrate deep into the formation.

03

Raise & Restore

Move the tool up through the screen in controlled intervals. Mineral deposits, biological accumulation, and obstructions are dislodged — often restoring wells beyond original capacity.

Technology

Built for the field
Engineered to outperform

Shock Wave Generation

Precision-controlled bursts of compressed nitrogen or air create high-energy shock waves that penetrate well screens, gravel packs, and surrounding aquifer zones simultaneously.

Oscillating Bubble Action

Expanding and contracting gas bubbles force water in and out of the formation — mechanically dislodging incrustation and biofouling that chemicals alone can't reach.

Surface Pressure Control

Operators adjust gas pressure from the surface in real time — from 225 to 3,000 psi — without interrupting treatment or pulling the tool.

Chemical Synergy

When used alongside acid or other chemical treatments, AirShock creates vigorous agitation that accelerates incrustation dissolution — dramatically reducing chemical volumes required.

AIG Technical Specifications

Model Well Dia. Pulse Rate Weight
AIG-1.2"2–3"25/min4.5 lbs
AIG-1.8"4–6"22/min8 lbs
AIG-2.6"6–10"22/min19 lbs
AIG-3.7"10–14"22/min30 lbs
AIG-5.0"14–16"16/min69 lbs
AIG-6.0"16–20"16/min128 lbs
AIG-8.0"20"+ 16/min143 lbs

Pressure Range: 225 – 3,000 psi
Gas Supply: Nitrogen or compressed air (contractor-supplied)
Kit Includes: AIG unit, hose reel with control panel, delivery hose
Well Types: Screened wells, open-hole

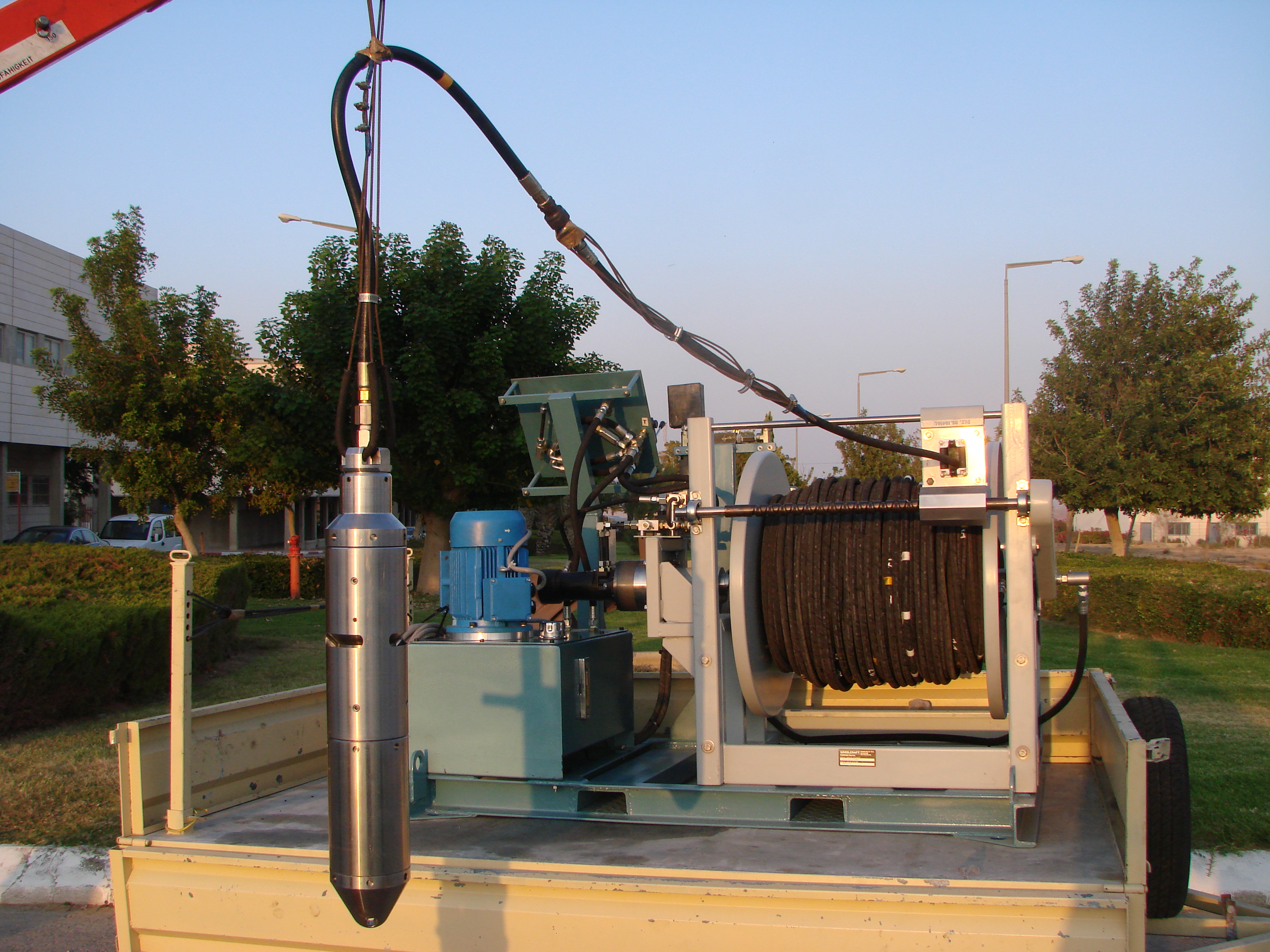

AirShock® impulse generator and hydraulic hose reel, truck-mounted deployment.
The complete AirShock® system — impulse generator, hose reel, and power pack.
The AIGs

7 models — Any well

From 2-inch monitoring wells to wells over 20 inches in diameter — there's an AIG for every application. Click a model to see full specifications.

PVC Well? Special models are available, designed for the safety of PVC screens and casing. Contact us for details.

Hose Reels

State-of-the-art hose reels

Flow Industries designs and builds the high-pressure hose reels that run AirShock into the well. When the market had nothing tough enough for our customers, we engineered our own — manual, hydraulic, or electric drive, in any hose length. Today they’re supplied across drilling, marine, military, aviation, and industrial applications.

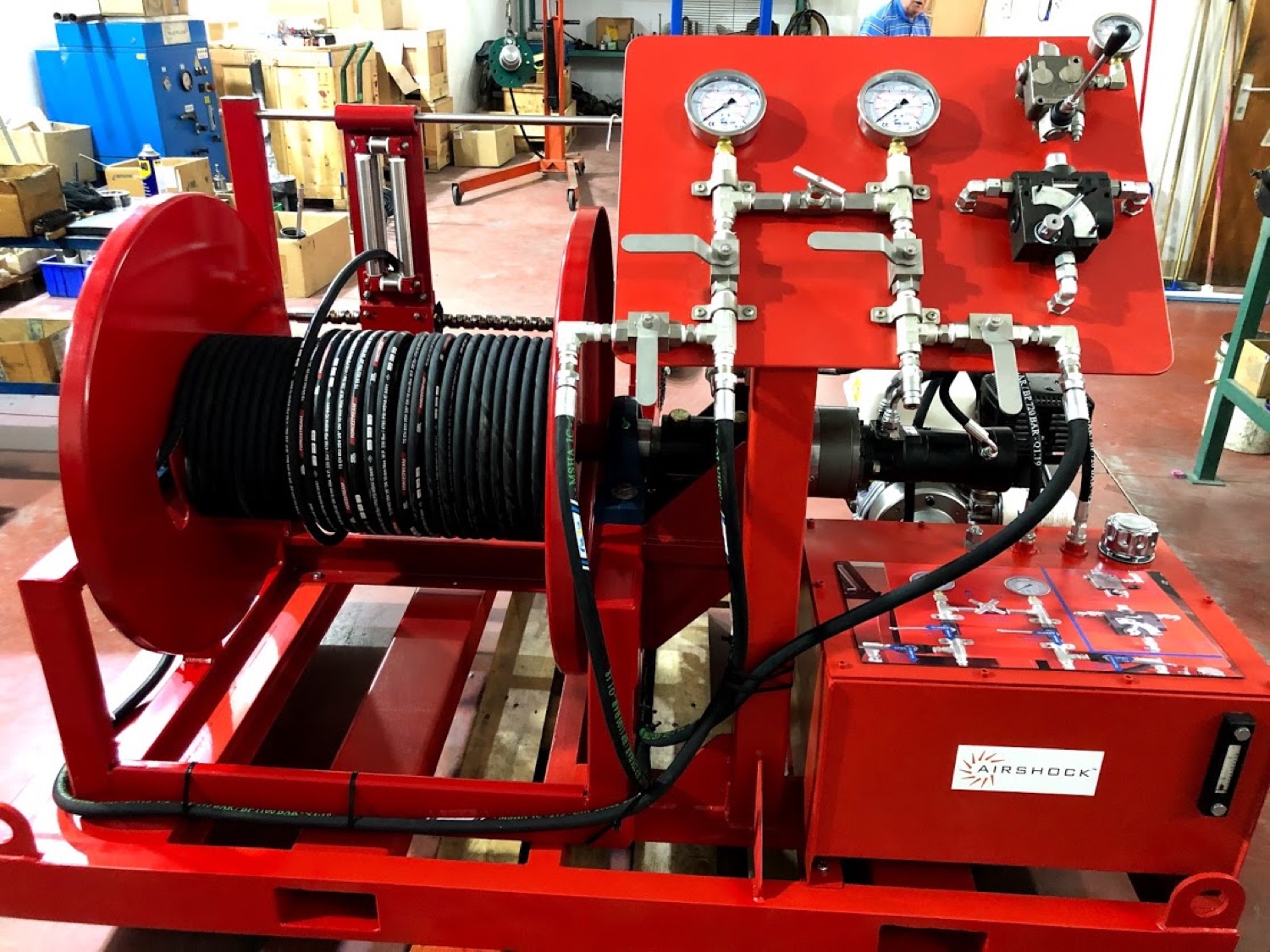

AirShock hydraulic hose reel skid with control panel, gauges and hose spool

Hydraulic hose reel

Heavy-duty hydraulic-drive reel for large hose capacity — up to 600 m. Fully welded steel spool, high-pressure swivel and fluid path, level rewind, and built-in automatic brake.

Watch it run →
AirShock electric-drive hose reel with electric motor, gearbox and control box

Electric hose reel

Compact electric-drive reel for lighter, powered deployment — the same rugged construction in a smaller, mains-powered package.

Watch it run →

Hydraulic reel — flexible, smooth speed control ideal for deep wells; convenient and safe

Fully self-contained — powerful gasoline engine; no electrical power required on site

Single-skid assembly — the entire unit mounts easily on the vehicle of your choice

View full hose-reel specifications & configurations →
Proven Results

Numbers that speak
for themselves

Real-world outcomes from drilling contractors and water authorities across six continents.

100%+

Water Well Specific Capacity Restoration

Wells consistently restored to full specific capacity — often exceeding original design performance.

675%

Remarkable Recovery

A well declined to 25% of original capacity was restored to 675% — delivering 169% of its original design specific capacity.

10min

Obstruction Cleared

Gravel pack bridge in Bolivia cleared in 10 minutes — after 10 days of traditional methods failed.

0%

Sanding Eliminated

A heavily sanding well in Wisconsin was treated with AirShock Gravel Stimulation — sanding reduced to 0%.

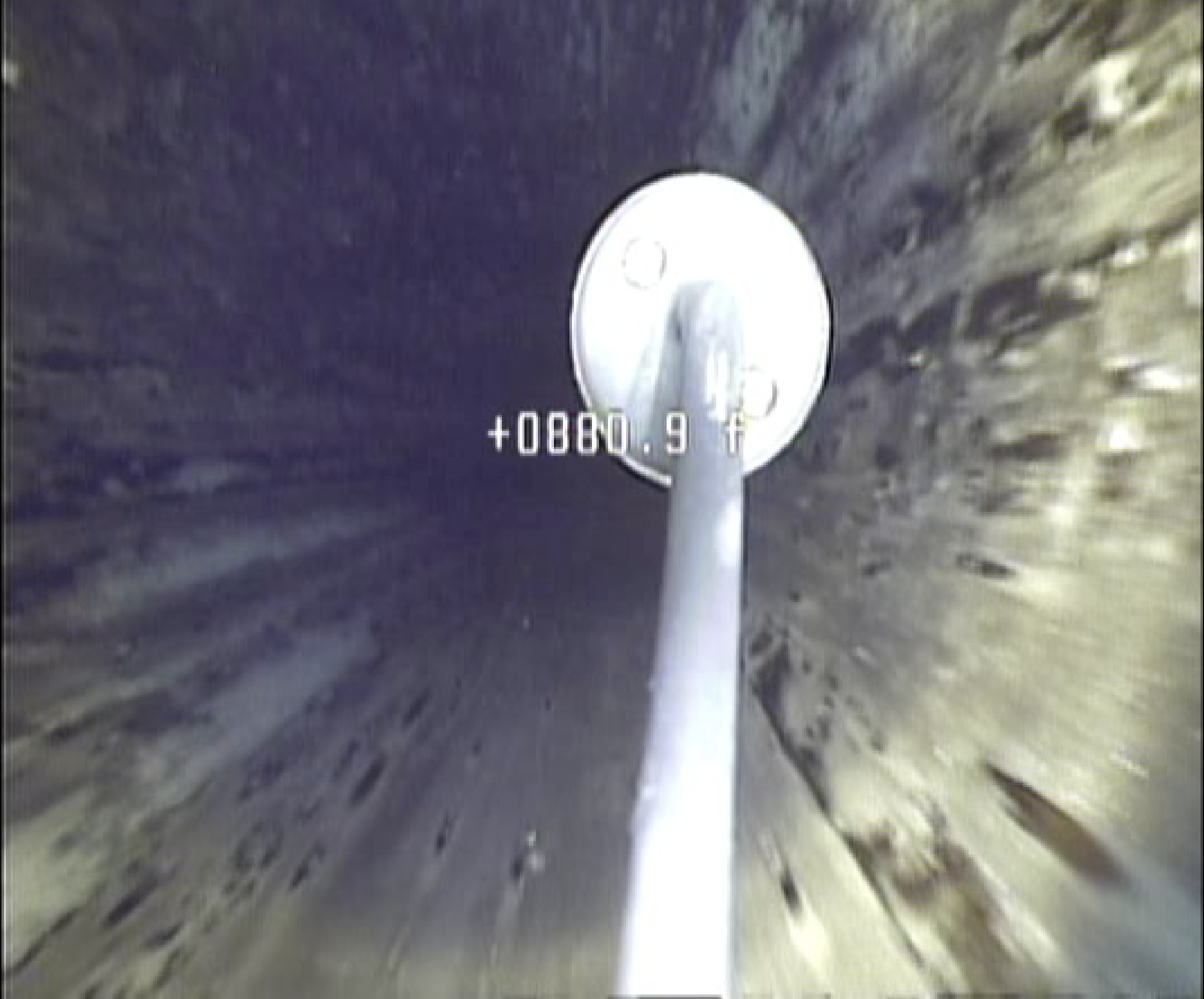

Before AirShock treatment Before

Flow severely restricted by mineral buildup at the screen

After AirShock treatment After

Screen completely cleared after a single AirShock treatment —
capacity fully restored

From Flow Industries' documented treatment archive. Results depend on site conditions and system configuration. View documented case studies →

Testimonials

Trusted by contractors
worldwide

I am pleased, not only with the results we have achieved with AirShock, but how easy it is to setup and apply.

3 wells → 90%+ capacity · 1 well → 141% capacity
RM
Roger D. Miller
Technical Director · Layne Christensen, Inc., USA

We got incredible results with AirShock. We increased the specific flow for about 400% — from 30 lps at 70m to 74 lps at 42m.

400% flow increase · Pump depth cut nearly in half
JM
Jerónimo von Wuthenau Mayer
Mtro. Ing. · Equipozo, Mexico

AirShock made in 10 minutes what traditional techniques like jetting, surging and airlift could not do in 10 days. Very impressive.

Gravel pack obstruction cleared in 10 minutes
MS
Mauricio Solis
Owner · HIDRO DRILL, Bolivia

Results with and without AirShock are as different as day and night. With AirShock I am getting fantastic results.

Consistent performance across multiple well types
CC
Chuck Claverack
Owner · Claverack Pump Service, NY, USA

Well F2 increased from 3.5 to 55 m³/h/m with only 600 kg acid. The AirShock dramatically reduced the chemical volume we needed.

F1: 5→29 · F2: 3.5→55 · F3: 7→50 (m³/h/m)
JS
Joël Sillard
Chef du Service · SADE, France

We have used the system and it is working great. The simplicity of operation and the quality of results makes AirShock a must-have for any contractor.

Immediate operational impact on first deployment
GB
Guy Beemer
Owner · Beemer Inc., USA
Get Started

Request a quote today

Website

air-shock.com
No Royalties. No Minimum Fees. Once you own an AirShock® kit, it's yours to deploy on as many wells as you choose. No annual licensing, no per-job fees — just results.

Get a Quote

Tell us about your wells and we'll recommend the right AIG model for your operation.
